    YYW-5000A hard bearing balancing machine

YYW series of hard bearing balancing machine is a new type of General balancing machine developed rapidly in recent years, which has a wide range of uses. It has the characteristics of high efficiency, simple operation, intuitive display, rapid measurement and good stability. It is an advanced dynamic balancing equipment, which is suitable for dynamic balancing verification of various rotating parts. Therefore, this series of balancing machine has become more and more popular with users Welcome products.

The supporting system of the mechanical part of the machine adopts H-type support, which has strong restoring force and good stability. It can directly measure and display the unbalance of more than 10kg. The control device of this machine adds the function of "inching" slow turning, which is convenient for the balance process operation of large rotor.

YYW-5000A dynamic balancing machine is a kind of balancing machine specially designed and manufactured for general mechanical and electrical industry. This machine is designed for horizontal hard support, universal joint drive, flat belt drive, digital meter display and other general forms, with the characteristics of general horizontal hard support balancing machine. The two main parameters are: the maximum balance rotor diameter is 2000 mm; the maximum rotor mass is 5000 kg, which can ensure that the most of the dimensions can be detected with the highest sensitivity for the rotor of this machine.

The machine is equipped with a double device of universal joint and ring belt drive.

The transmission mode adopts rubber flat belt transmission, which has good transmission stability, and can be applied to multiple kinds of single piece balancing process requirements in the maintenance industry; the piezoelectric force sensor, as an electromechanical energy exchange mechanism, replaces the previous acceleration sensor and amplification mechanism, more in line with the force measuring principle of the balancing machine, with light structure, convenient installation and high sensitivity; the photoelectric sensor is used as the phase reference signal No. source.

YYW - 5000A型硬支承平衡机

YYW型系列硬支承平衡机是近年来迅速发展起来的,用途范围比较广的新型通用平衡机,它具有效率高、操作简便、显示直观、测量迅速、稳定性好等特点,是一种较为先进的动平衡设备,适用于各种旋转零部件的动平衡校验,因此本系列平衡机成为越来越受用户欢迎的产品。

本机机械部分支承系统采用H型支承,恢复力强、稳定性好,可以直接测量显示大于10kg的不平衡量 。本机的控制装置增加"点动"慢盘车功能,便于大转子的平衡工艺操作。

YYW-5000A型动平衡机是本厂针对通用机电行业专门设计制造的一种平衡机。本机设计为卧式硬支承、万向节传动、 平皮带传动、数字表显示等通用形式,具有通用卧式硬支承平衡机的特点。其两项主要参数为:最大平衡转子直径2000毫米;最大转子质量5000公斤,可保证以最高灵敏度检测绝大部分尺寸适用于本机的转子。

本机配套了万向节与圈带传动双装置。

传动方式采用橡胶平皮带传动,传动平稳性好,可适用于维修行业的多品种单件平衡工艺要求;压电式力传感器作为机电换能机构,取代了以往的加速传感器及放大机构,更符合平衡机的测力原理,且结构轻巧、安装方便、灵敏度高;以光电传感器作为相位基准信号源







.

The mechanical part can be equipped with a digital display of the hard support balance electromechanical measurement system

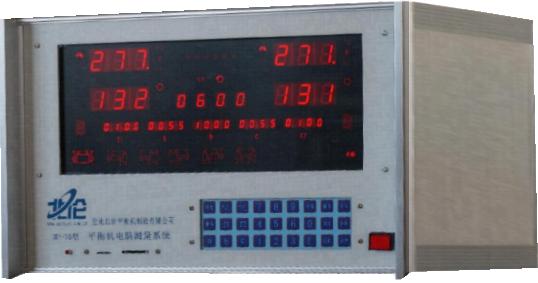

Hp16 electric measuring meter is a special computer for balancing machine. As long as you stabilize the measurement data, press the memory key to memorize the data. Then the customer needs different solution results. You can input the corresponding  a, b, c, r1, r2, parameters and get the corresponding calculation results immediately. Moreover, the calculation parameters can be changed at any time to directly get the changed calculation results.

Parameters a, b, c, r1, r2, weighting and de weighting modes, as well as static couple and support mode can be input first. It can also be input later or modified at any time. The electric measuring box will transform and output the value corresponding to the new parameter at any time.

With the latest 32-bit CPU industrial computer chip, high-speed dynamic AC sampling, digital optimized dynamic filtering with parameters can be set.

The measurement data is calculated by computer software vector and displayed in digital form. The machine has the following features: the computer measurement system can directly read out the weight (kg or G) and phase (degree) of the heavy (light) weight in digital display mode.

Store 99 rotor  a, b, c, r1, r2, input parameters.

Open the memory key after starting the machine, directly measure the dynamic balance data, automatically memorize and stop the machine, input or modify the parameters such as  a, b, c, r1, r2,  support mode, etc., and the electric measuring box will automatically recalculate the separation results.

After parking, you can see the static unbalance value.


2. Basic parameters and main technical performance indexes
2.1 working parameters:
2.1.1 mass range of workpiece: 300-5000 kg
2.1.2 the accidental overload of each support frame can reach 2700 kg
2.1.3 maximum diameter of workpiece 2000 mm
2.1.4 range of workpiece bearing journal: 40-300 mm
2.1.5 maximum bearing length: 1900 + 3000 mm
2.1.6 motor power (universal joint drive) 22 kw
2.1.7 motor power (belt coiler drive) 4 kW
2.1.8 balanced working speed: 150-770 rpm
2.2 main performance and technical indexes
2.2.1 minimum achievable residual unbalance EMAR ≤ 1g.mm/kg
2.2.2 reduction rate of Unbalance: URR ≥ 90%

本机械部分可配套采用数字显示的硬支承平衡机电测系统

HP16电测箱是一个平衡机专用电脑,只要你稳定测量数据,按记忆键,记忆好数据。然后客户需要不同的解算结果,可以输入对应的 a,b,c,r1,r2参数,马上得出 对应的计算结果。而且可以随时改变计算参数,直接得出改变后的计算结果。

可以先输入参数a,b,c,r1,r2,加重、去重方式,以及静偶、支承模式等等。也可以后输入,也可以随时修改,电测箱会随时变换输出新参数对应的数值。

  用最新的32位cpu工业计算机芯片,高速动态交流采样,可设置参数的数字优化动态滤波。

计算机软件矢量解算测量数据,全界面数字显示形式。该机具有以下特点:计算机测量系统以数字显示方式,可直接读出偏重(轻)量的大小(公斤或克)、相位(度)。

存储99个转子a,b,c,r1,r2,输入参数。

   开机后打开记忆键,直接测量动平衡数据, 自动记忆并且停车后再输入或修改a,b,c,r2,r1支承方式等参数,电测箱会自动重新计算分离结果。 停车后可以看静不平衡量值。

2.基本参数及主要技术性能指标

.1    工作参数:

.1.1  工件质量范围        3005000  kg

.1.2  每个支承架的偶然超载可至    2700  kg

.1.3  工件最大直径        2000   mm

.1.4  工件支承轴颈范围      40300   mm

.1.5  最大支承长度         1900 +3000  mm

.1.6  电动机功率(万向节拖动)      22   KW

.1.7  电动机功率(圈带器拖动)     4   KW

.1.8  平衡工作转速       150-770   /

.2  主要性能技术指标

.2.1  最小可达剩余不平衡度   mar1g.mm/kg

.2.2  不平衡量减少率       URR90
