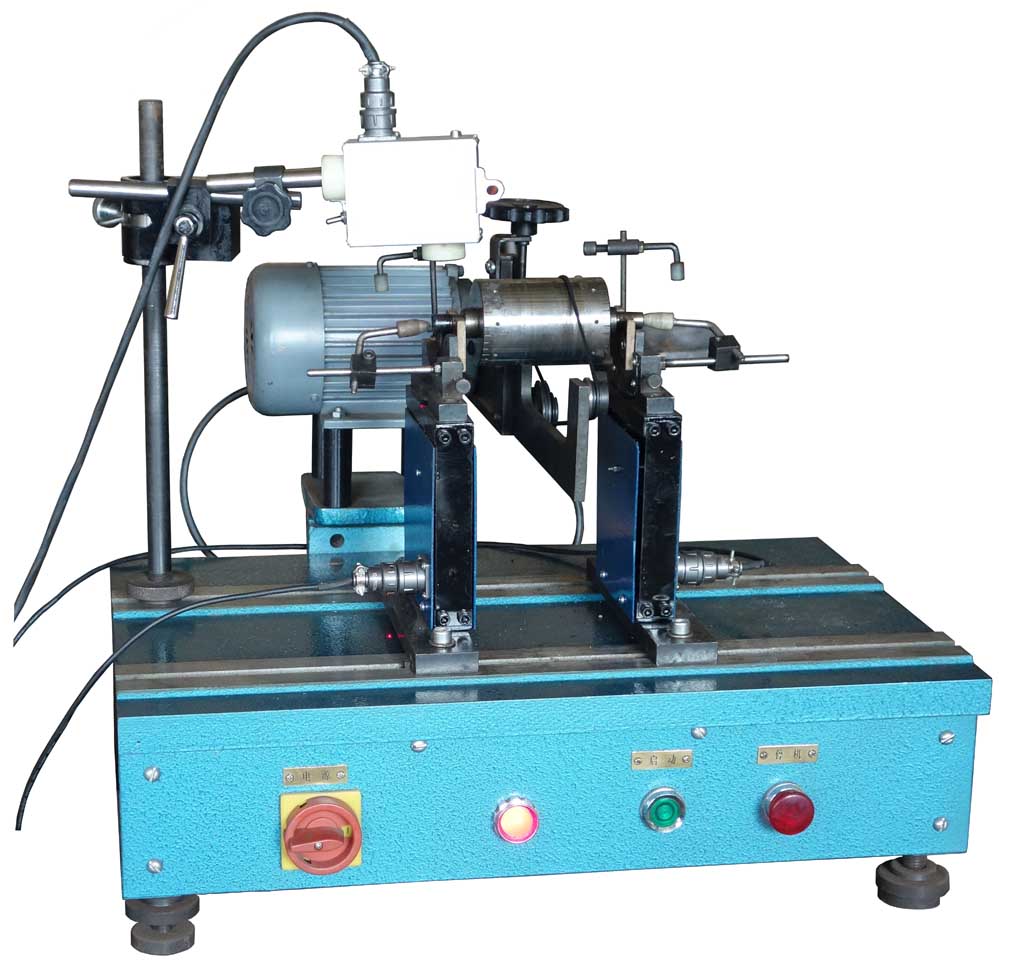

RYQ-5 Soft-bearing balancing machine





   The machine is not a simple replica of the old-fashioned soft-bearing balancing machine, from the mechanical structure and electrical measurement system has been completely redesigned. Mechanical durability greatly improved.
1.  Support frame: soft support frame structure is simple, stable performance. The use of speed sensor, no lateral sensitivity, lower limit requirements, making the operation requirements simple and quick. Compact structure, strong and reliable, the mechanical model is reasonable, the rotor of the actual imbalance can be supported by the frame and sensors to truly reflect. And this is to ensure the balancing machine measurement accuracy of the most basic part. Balance can be visually hand to feel the state.
   Small rotor balance is too much trouble, the soft bearing mode is the mode of operation closest to the state, can almost run the speed measurement. Therefore, it is preferable that the high-precision balancing is performed with the soft supporting operation.
   This years of soft bearing balancing machine market has the amount of regression is due to the high rate of structural failure caused by the machine, and now we design an ultra-low failure rate of the rack.
   Using BL-15 general computer electrical measuring box as a supporting measurement system,
The system has the functions of automatic sensitivity control, automatic (or manual) storage of rotor data, direct readout of measured data (unbalance magnitude and angle), keyboard input of rotor data, balancing of dynamic and static-even balance.
The rotor data can be saved and extracted by the keyboard. Up to 99 rotor data can be saved.
The machine is designed for horizontal soft support, computer measurement digital table display and other common forms.
In this case,
2. The basic parameters and the main technical performance indicators
2.1 Basic parameters
2.1.1 workpiece quality range of 0.2 ~ 5 kg
2.1.2 Accidental overload of each support 3.5 kg
2.1.3 The maximum workpiece diameter of 310 m m
2.1.4 workpiece journal range of 5 ~ 30 m m
2.1.5 The maximum sensitivity of 0.005 g
2.1.6 The maximum distance between the centers of two supports is 400 mm
2.1.7 The minimum distance between centers of the two supports is 55 mm
2.1.8 Motor power 90 W
2.1.9 diameter belt drive diameter range of 8 ~ 90 mm
2.1.10 workpiece speed 1000 ~ 6000 r / min
2.2 The main technical performance indicators
2.2.1 The minimum achievable residual imbalance emar ≤ 0.3 g.mm / kg
2.2.2 Unbalance reduction rate URR ≥ 90%






BL-15 Electrical universal measuring instrument for balancing machine

  This is a special computer on the balancing machine, you can handle the balance of the various conditions of the signal. Can be calibrated to single-sided and double-sided measurement mode.
The core circuit of the electrical measuring box is 32-bit industrial single-chip AC direct high-speed full-wave sampling, software sine wave correlation function filtering, has a good filtering and frequency tracking performance. As a wide range of tracking, electrical measuring box with only a block speed range of work to facilitate the user. Especially the use of automatic bandwidth switching circuit, a reasonable solution to the electrical box response to the rapidity and stability of the contradiction between the electrical measuring box with excellent low-speed performance. The speed of the electrical box instructions 80-6500RPM.
  The electric box can automatically set the measured speed memory measurement data. Once again, the power box automatically enters the next measurement.
  Record button. If the user needs to record the test results in writing, press the Record button to record the measurement data to the SD card (or tf card) for permanent recording or printing of the test report.
This machine uses the whole vector solution, through the sensor measurement of the K coefficient group, the vector to calculate the above C influence coefficient group.
The accuracy of resolving precision has important relation with the position of the measuring point of the two groups of sensors. The position of the signal taken corresponds to the maximum point of measurement difference of the weighted surface (resolving plane) of the rotor. (Ie the mechanical structure determines the measured signal separation).
Phase calculation range of 360 degrees,
As a result of the full vector operation, the separation of the calculation is not limited in value, in other words in the balancing machine on the left and right sensor line interpolation can also make the normal separation calculation.
The result of the calibration is determined by the calibration method. The result of the weighted calibration shows the amount of excess, and the balance of the process is removed by removing the unbalance.
Electric measuring box can be measured at any time after the completion of changes to 180-degree process of increasing the balance.





MATHEMATICAL CALCULATION OF CALIBRATION PROCESS
A test re-input M1 input M1 value and angle, measured value V1 (left VL1, right VR1)
(M2) (left side VL2, right side VR2) M2 value and angle, measured value V2 (left side VL2, right side VR2)
Calibration quality factor dp1 = | V1 / VL0% | Percentage of the scaled quantity to the initial quantity
Dp2 = | V2 / VR0% | When less than 30% that the lack of calibration.
Vector calculation formula

        UL=C11*VL+C12*VR

        UR=C21*VL+C22*VR

 The storage parameters for each rotor are 11 values:

        C11 ∠11  C12 ∠12 dp1  dp2  C21 ∠21  C22 ∠22 n

   Exit the calibration state, calibration complete exit calibration status.
In this case,Instrument display results: (vector calculation results)

        UL0∠UL0=C11∠11*VL0∠L0+C12∠12*VR0∠R0

        UR0∠UR0=C21∠21*VL0∠L0+C22∠22*VR0∠R0
