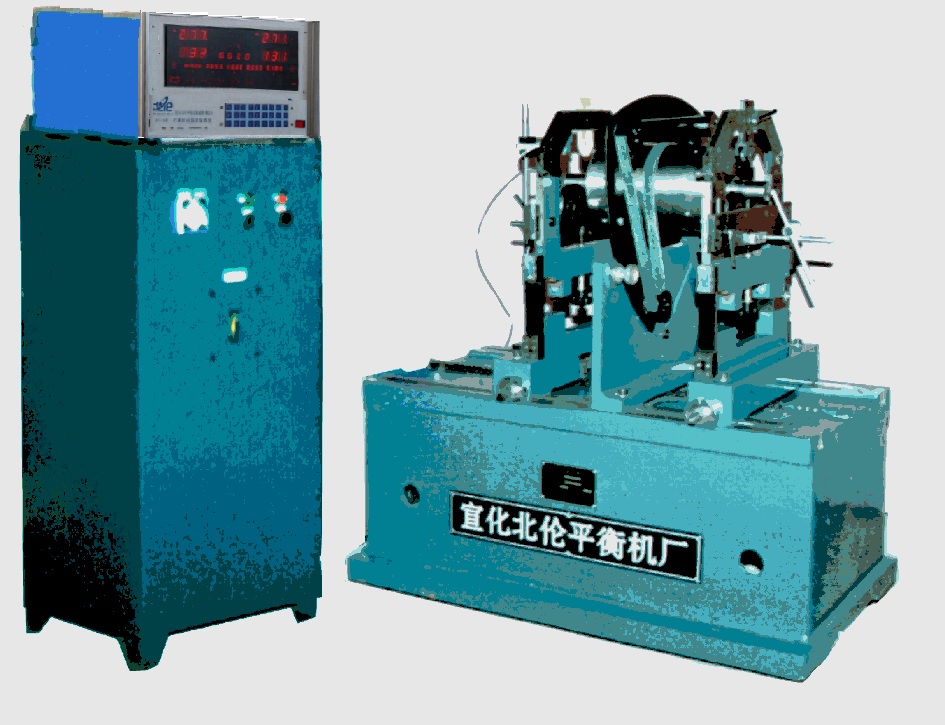

YYQ-100 The Hard Bearing Balancer

(With Belt drive)

The Y series of balancing machine , is an ideal versatile for rotors of different types .

It`s easy operation. Legible reading , high efficiency ,and to be suitable motor ,fan ,crank shaft machine etc.

SPECIFICATION

　Mass of workpieces 10--100kg

　Max.diameter of workpieces 900mm

　Journal diameter of workpieces 8--80mm

　Distance between two bearing supports of workpieces journal 900 mm

　Balancing speed (when the diament of driving rotor is 100mm) 600--1850 r/min

　Min.achievable residual unbalance (emar) ≤0.5g.mm/kg

　Power supply 380v 50hz 3ph

　Motor rating 0.85/1.1kw

　Dimension(L*W*H)

Mainframe 1000×600×970mm

Electronic measuring and Control cabinet 500×500×1100mm

　

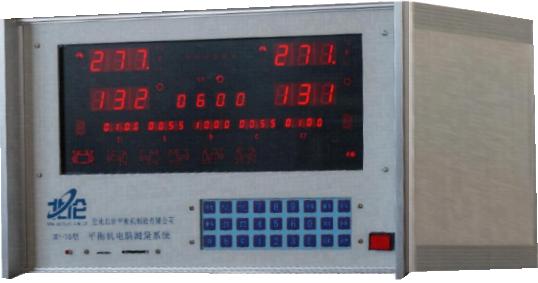

HP-16 Electrical measuring instrument for Balancing machine

others: YYQ-50  YYQ-100    YYQ-160   YYQ-300   YYQ-1000

　
