特殊转子的平衡工艺

特殊转子平衡下载



大型低速转子的平衡

水泥磨机风选机转子

  必须具备较大的拖动功率,低速测量能力的电测系统,比较干净的电磁环境。例如:大型矿物磨机转子(直径大于4米)等。

YYW-16000A 动平衡机



本机的工作能力:可最大平衡重量16吨

         最大工作直径7米

         已经测量过2米宽出风口,直径5.1米的风机转子



   (低转速平衡机、7米大直径)低速平衡机 低于80转/分 ,大直径平衡机 7000mm

 大规格平衡机选择的技术条件:  大直径平衡机的验收方法就是用大转子验收。

大规格的平衡机出于安全的考虑,使用时要完善考虑运转安全性,不要拍脑门使用,要清楚转子的运转参数是不是在工作范围之内!!!

  它的说明书具备完整的设计参数图标,它不止一个参数图表。这些是平衡机使用厂家的技术人员必须知道的运转根据。

   特点:驱动功率要考虑用户的转子的具体情况进行确定,而不是问用户要多大功率。

要拿到用户的最大转子的使用参数,平衡机生产厂家计算用多大的驱动功率才可以满足测量时的需求。

   平衡机的驱动功率与测量系统有一个交叉参数,就是测量转速,与驱动转速。

如果你的测量系统是200rpm开始测量,那么你的驱动系统得满足此要求。

    例如:2000kw的一个风机如果工作转速是500rpm,那么它运转到200rpm时是128kw。

而140rpm是43.9kw

    所以一个能测量低速的测量系统,是大型风机平衡机的必备条件---------------



本机特点:

1 驱动功率较大。

2 测量转速低 80转/分开始测量

3 较大的工作直径(风机的特点)。

4 重型平衡机(大于10吨)的支撑滚轮必须满足工件轴的最大接触压强条件(满足正压力方向的弹性工作范围,以避免接触表面的疲劳破坏)。也就是滚轮的工作直径必须足够大,才可以保证接触的面积足够大。否则会伤害客户的产品轴(疲劳压伤,与塑性变形压伤)。

5 过载能力较大(两倍),铸钢整体测量刚度梁,线性度保持大于最大质量的两倍以上。

6 有制动功能,尤其是大型平衡机。大型的转子的惯性停车会在20分左右延续。有制动功能可以在1-3分内停车。

7 大型平衡机有多级变速箱(4-5级减速6倍以上)



小风机转子的平衡

风机转子旋转时有轴向力的产生,因此用皮带驱动的模式进行工艺平衡会产生轴向力,由于约束干扰,平衡精度难于满足要求。同时平衡工艺的效率也比较低。

YYW-30型平衡机是本厂最新设计制造的一种 高效率小规格平衡机。

本机主要解决小风机的动平衡工艺问题,满足工厂生产规格配套。

特殊的小规格万向节结构,解决了小转子的万向节影响问题。

YYW-30型平衡机



极小高速转子的平衡

需要极低电磁噪声的电测技术,以及软支承小型平衡机。例如牙钻转子,小直流电机转子等。

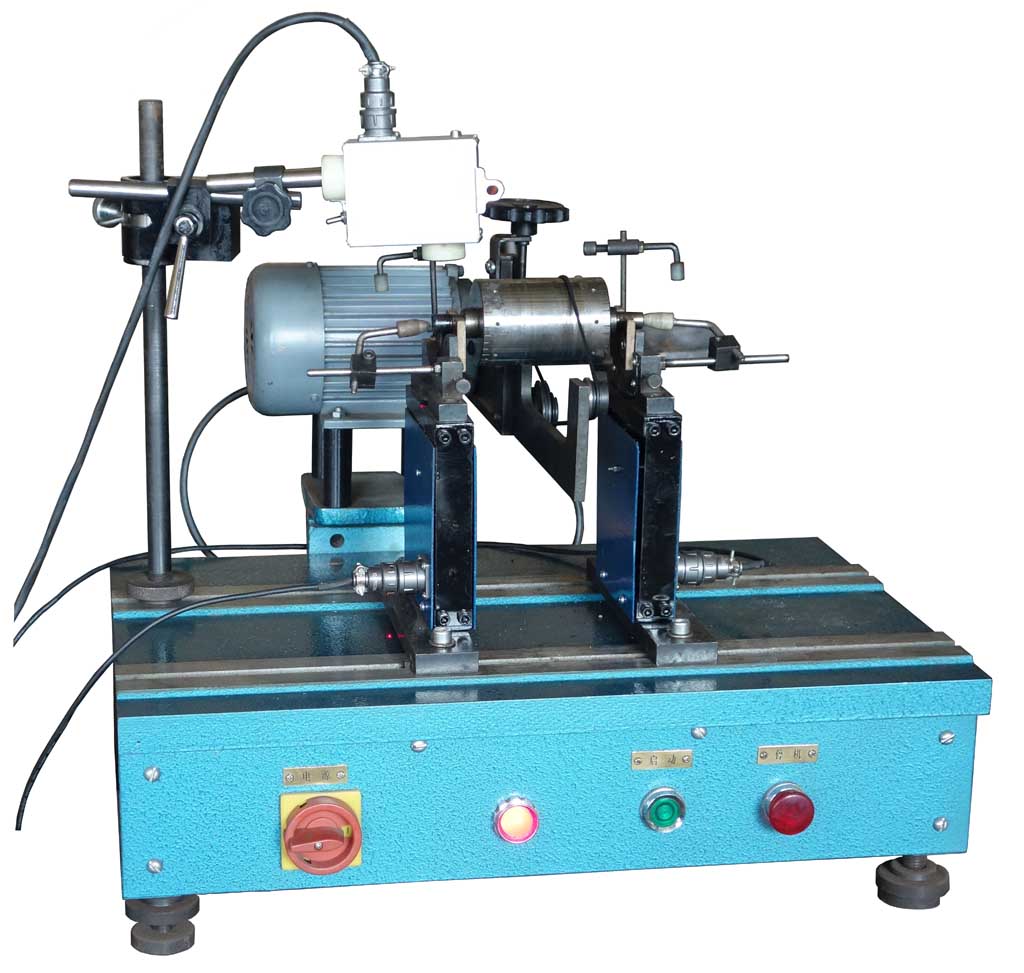

    RYQ-5型 软支承高精度平衡机

   本机的测量机构与老式软支承平衡机相同,从机械结构与电测系统完全经过重新设计改进,机械的耐用度大为提高。

  支承架:软支承架结构简单,性能稳定。采用速度传感器,没有侧向灵敏度,对限位要求较低,使得操作要求简便快捷。结构紧凑,牢固可靠,其力学模型合理,转子的实际不平衡量能通过支承架和传感器真实地反映出来。而这正是保证平衡机测量精度最基础的一个环节。平衡状况可以直观用手去感觉状态。

   小转子的平衡是比较麻烦的,软支承模式是最接近运转状态的模式,几乎可以工作转速测量。所以高精度平衡最好以软支承模式为上。

   这几年的软支承平衡机市场拥有量下降,是由于机器的结构故障率高造成的,现在我们设计出一个超低故障率的机架。

现场平衡

有些转子只能在现场平衡,需要有现场平衡仪,以及现场平衡工艺的娴熟操作经验。例如:不可以拆装的风机转子。测试方法参考------机械振动原因

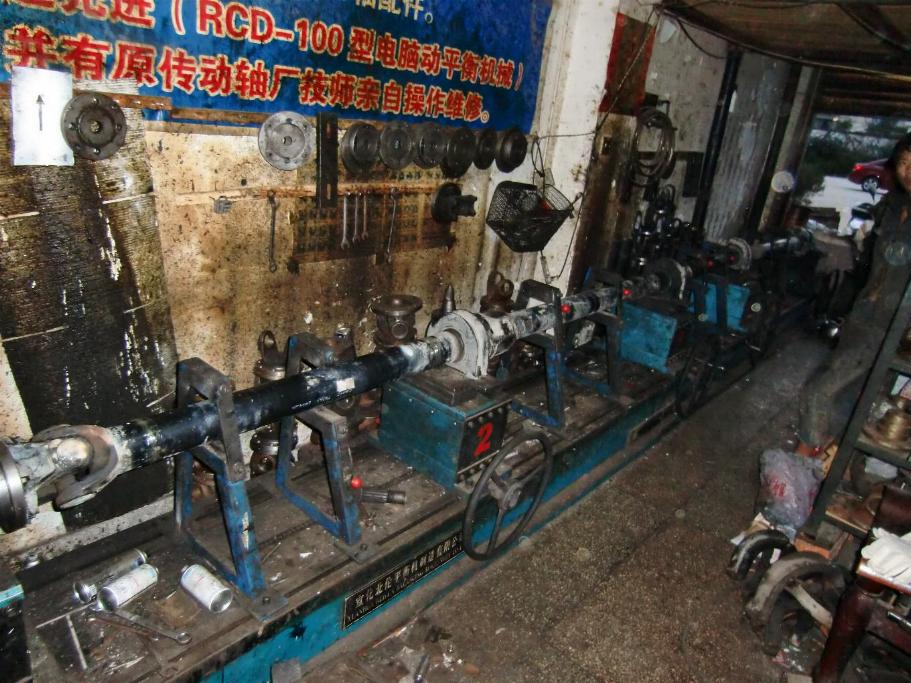

多节传动轴的平衡

   需要有多面信号切换的电测系统,多个摆架。由于端面齿具有传动力矩大的优点,所以现在许多的货车采用这样结构的传动轴,但是端面齿的结构不宜做到一致的同心度,所以采用单节平衡的方式不能解决其平衡问题,只有模仿其工作状况的平衡方法才可以解决其振动,烂胶套(中间支撑轴承)的问题。

    五摆架四轴联调,这是解决“端面齿传动轴”平衡问题的唯一办法。







高速转子的平衡

  需要挠性平衡技术,电测系统采用影响系数法进行解算。例如:化工行业用的高速压缩机。



有当量块转子的平衡

  需要有多面解算能力的电测系统,同时可以定矢量解算。例如:发动机的曲轴平衡工艺。


Special rotor balance process



Special rotor balance download



Large low-speed rotor balance:




Cement mill wind machine rotor


  Must have a larger drag power, low speed measurement capability of the electrical measurement system, a relatively clean electromagnetic environment. For example: large mineral mill rotor (diameter greater than 4 meters) and so on.

YYW-16000A Balancing Machine



   (Low speed balancing machine, 7 meters large diameter) low speed balancing machine below 80 rev / min, large diameter balancing machine 7000mm

   Large-scale balance machine out of safety considerations, when used to improve the operational safety considerations, do not shoot the forehead to use, to be clear rotor operating parameters are not within the scope of work! ! !

  It's manual with a complete design parameter icon, it has more than one parameter chart. These are the basics of how a technician using a balancing machine must know it.



   Features: Drive power to consider the user's rotor to determine the specific circumstances, rather than ask the user how much power.

To get the user's maximum rotor parameters, balancing machine manufacturers calculate how much drive power can meet the needs of the measurement.

   Balancing machine drive power and measurement system has a cross-parameter, that is, measuring speed, and drive speed.

If your measuring system starts measuring at 200 rpm then your drive system will meet this requirement.

    For example: A fan of 2000kw If the working speed is 500rpm, then it runs to 200rpm when it is 128kw.

While 140rpm is 43.9kw

    Therefore, a measurement system that can measure low speed is a prerequisite for a large fan balancing machine.



1 drive power larger.

2 Measurement speed is low 80 rpm Start measurement

3 larger working diameter (fan features).

4 Heavy duty balancing machine (greater than 10 tons) must meet the maximum contact pressure conditions of the workpiece axis (to meet the positive pressure direction of the elastic working range, in order to avoid contact with the surface fatigue damage). That is, the work of the wheel diameter must be large enough to ensure that the contact area is large enough. Otherwise it will hurt the customer's product axis (fatigue crush, crush with plastic deformation).

5 Overload capacity larger (twice), the overall stiffness of the cast steel measured, the linearity to maintain more than twice the maximum mass.

6 has a braking function, especially a large balancing machine. Large rotor inertia parking will continue around 20 minutes. Braking function can be within 1-3 minutes parking.

7 large-scale balancing machine with multi-stage gearbox (4-5 deceleration of 6 times or more)

The company is located in:

Small fan rotor balance

Axial force generated when the fan rotor rotates, so the use of belt-driven mode balance will produce axial force, the balance of interference difficult to meet the requirements of precision. At the same time the efficiency of the process is relatively low.

YYW-30-type balancing machine is the latest design and manufacture of a high-efficiency small size balancing machine.

This machine is mainly to solve the problem of dynamic balance of small fan to meet the production specifications of the factory.

The special small-size universal joint structure solves the problem of the universal joint of the small rotor.



YYW-30-type balancing machine

The company is located in:

Very small high-speed rotor balance:

Electro-measurement technology that requires very low electromagnetic noise, as well as soft support small balance machines. Such as dental drill rotor, small DC motor rotor and so on.

    RYQ-5-type soft-bearing precision balancing machines



   The measuring mechanism of this machine is the same as that of the old-style soft support balancer, which is completely redesigned and improved from mechanical structure and electrical measuring system, and the durability of the machine is greatly improved.

  Support: Soft support structure is simple, stable performance. The use of speed sensor, no lateral sensitivity, less demanding on the limit, making the operation requirements simple and quick. The structure is compact, solid and reliable, and its mechanical model is reasonable. The actual imbalance of the rotor can be truly reflected by the support frame and the sensor. And this is exactly the most basic part to ensure the measurement accuracy of the balance machine. Balance can be intuitive to use hand to feel the state.

   Small rotor balance is more troublesome, soft support mode is the closest operating mode, almost working speed measurement. Therefore, high-precision balance is best to soft support mode.

   In recent years, the market decline of the soft support balancer is due to the high structural failure rate of the machine. Now we have designed an ultra-low failure rate rack.

Site balance:

Some rotors can only be balanced on site, requiring a field balancer, as well as a skilful operating experience of the field balancing process. For example: Do not disassemble the fan rotor. Test Method Reference ------ Mechanical vibration reasons






Multi-section drive shaft balance:

   Need to have multiple signal switching electrical measurement system, a number of swing frame. Due to the advantages of big torque of face teeth, many trucks now use such a structure of the drive shaft, but the end tooth structure should not be consistent concentricity, so the use of a single balance can not solve the balance of the problem, only imitation The balance of their working conditions before they can solve the vibration, rotten rubber sleeve (intermediate support bearing) problem.

    Five pendulum four-axis coupling, which is to solve the "face gear drive shaft" the only way to balance the issue.


High-speed rotor balance:

  Need flexible balance technology, electrical measurement system using the influence coefficient method to solve. For example: chemical industry with high-speed compressor.


Equivalent block rotor balance:

  Need to have a multi-faceted electrical measurement system, at the same time can be fixed vector solution. For example: engine crankshaft balancing process.
