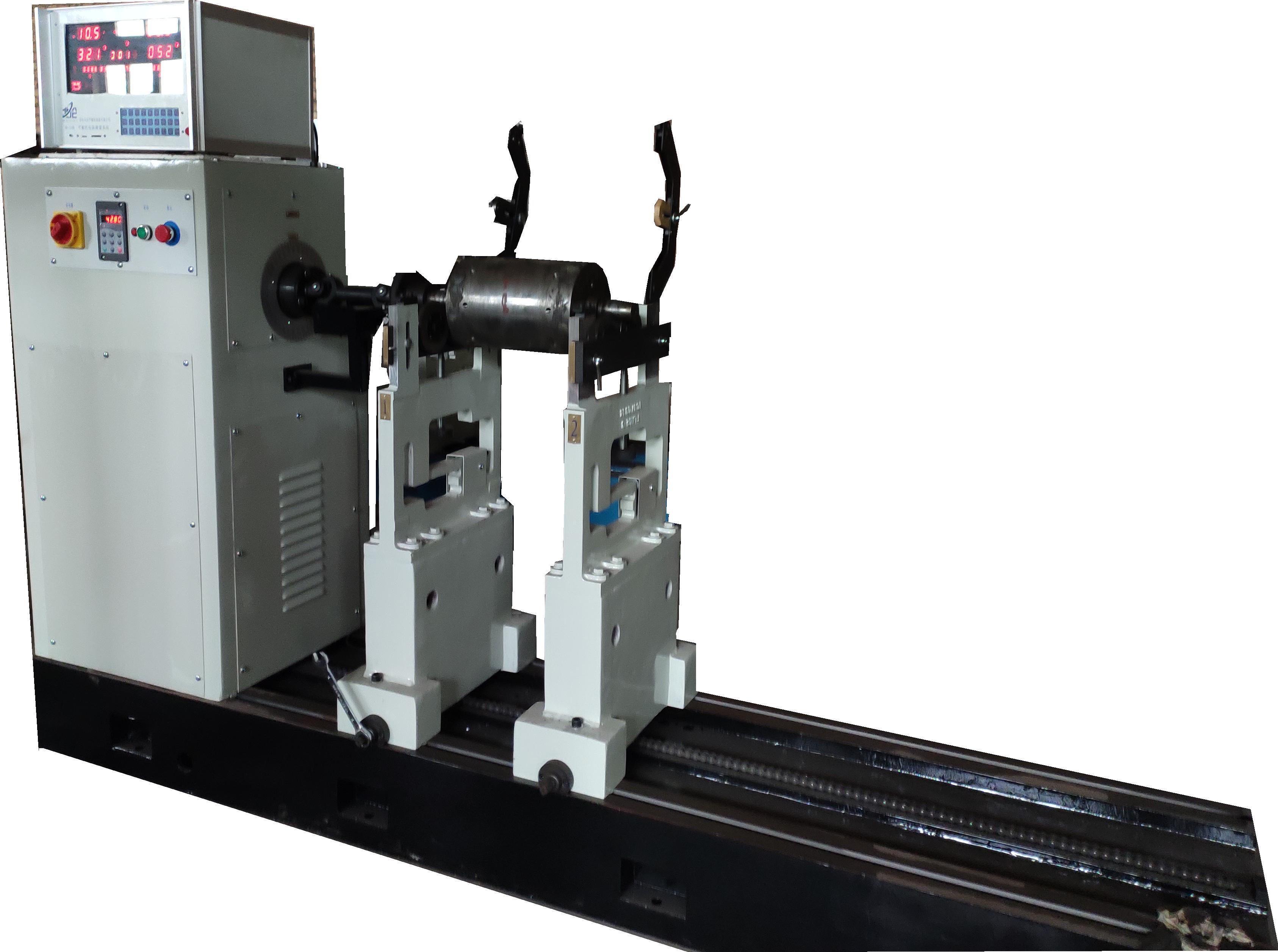

YFW-500 Balancing machine







 YFW-500 fan impeller balancing machine is a kind of balance machine specially designed and manufactured for fan manufacturing plant. The machine is designed for horizontal hard bearing, universal joint drive, digital display, automatic measuring electric measuring instrument and other general forms. The measurement part balancing machine using a closed type sensor. It has the advantages of high sensitivity, no damage to a durable, low speed measurement and good performance. In addition to the characteristics of the universal horizontal hard support balancing machine, two important parameters are given for the balance characteristics of the fan impeller. First, the maximum balance rotor diameter of 1600 mm, and secondly, the maximum rotor mass of 500 kg, these two parameters determine the highest sensitivity to detect the vast majority of dimensions applicable to the impeller of the machine.

HP-16 Electrical measuring instrument for Balancing machine



The main technical parameters are as follows:
1. Rotor mass range: 10-500kg
2. Maximum rotor diameter: Φ 1600mm
3. Maximum bearing shaft diameter: Φ 10 -- 90mm
4. Maximum bearing length: 1500 mm
5. Balanced working speed: 120 ---, 800 rpm
6. Minimum achievable residual unbalance: 1g. Mm / kg
7. Motor power: 4kw vvvf
8. Power supply: 380V, 50Hz

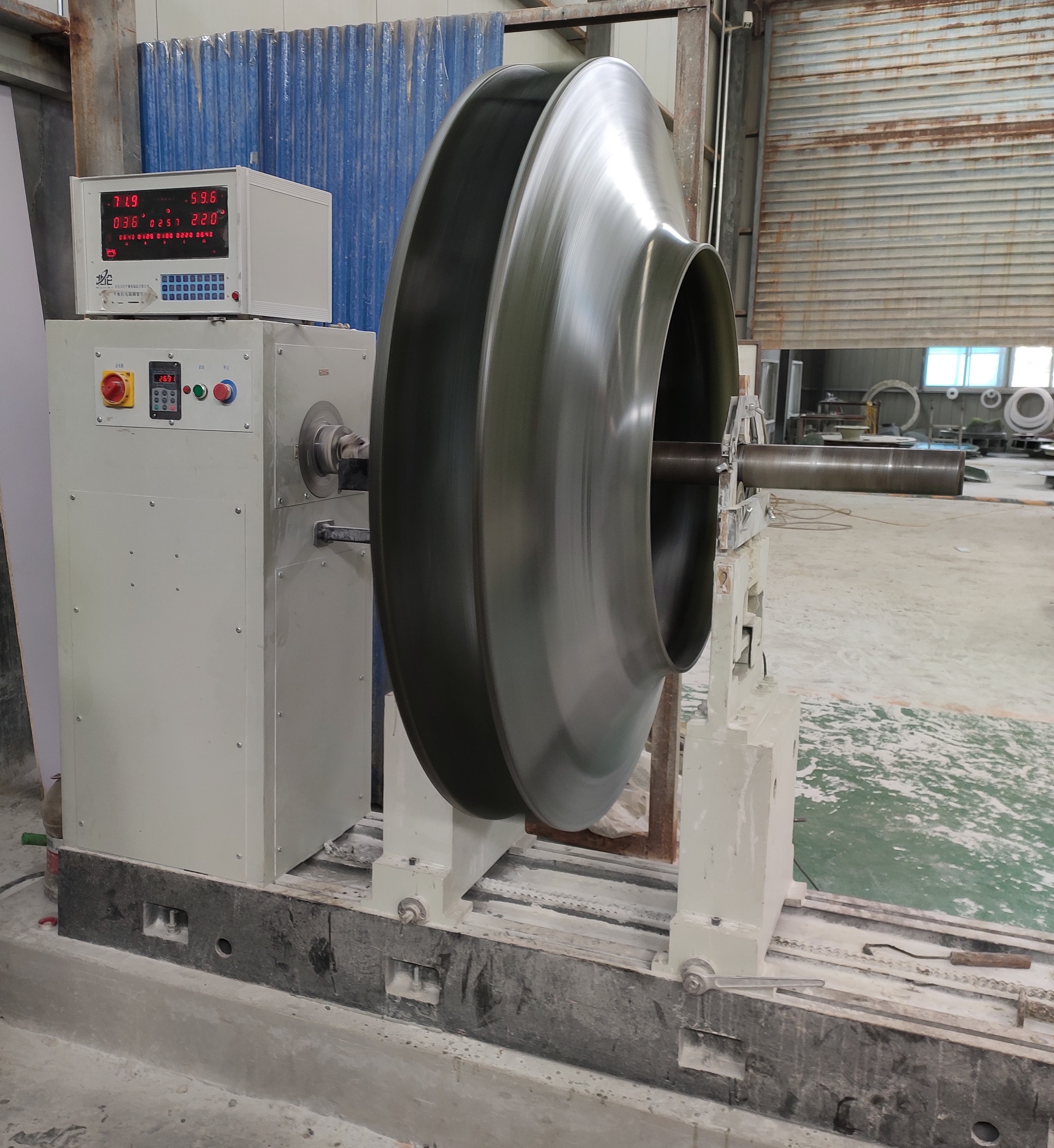

Yfw-500a hard support FRP fan balancer




This machine is a permanent standard hard bearing balancing machine-----

The rotor with different shape and weight does not need to be recalibrated. The magnitude and angle of the unbalance can be measured at one start.

Yfw-500a FRP fan impeller balancing machine is a kind of balancing machine specially designed and manufactured by our factory for FRP fan manufacturer. This machine is designed for horizontal hard support, universal joint drive, digital display automatic measurement electric meter and other general forms. The measurement part of the balancing machine adopts the closed force sensor, which has the advantages of non-collision, high sensitivity and durability, and good low-speed measurement performance. In addition to the characteristics of general horizontal hard bearing balancing machine, two important parameters are given specially for the balancing characteristics of fan impeller. First, the maximum balance rotor diameter is 1800 mm, and second, the maximum rotor mass is 500 kg. These two parameters determine that the machine can detect most of the dimensions with the highest sensitivity for the impeller of the machine.
