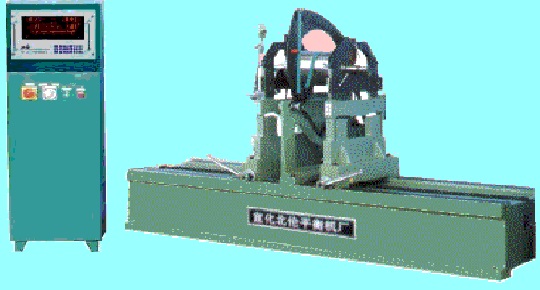

YYQ-160 The Hard Bearing Balancer

(With Belt drive)

The Y series of balancing machine , is an ideal versatile for rotors of different types .

It`s easy operation. Legible reading , high efficiency ,and to be suitable motor ,fan ,crank shaft machine etc.

                 SPECIFICATION





  Mass of workpieces       10--160kg

  Max.diameter of workpieces   1100mm

  Journal diameter of workpieces 10--90mm

  Distance between two bearing supports of workpieces journal 1500 mm

  Balancing speed (when the diament of driving rotor is 100mm) 600--1850 r/min

  Min.achievable residual unbalance (emar)    ≤0.5g.mm/kg

  Power supply     380v 50hz 3ph

  Motor rating     0.85/1.1kw



   others: YYQ-50  YYQ-100    YYQ-160   YYQ-300   YYQ-1000
