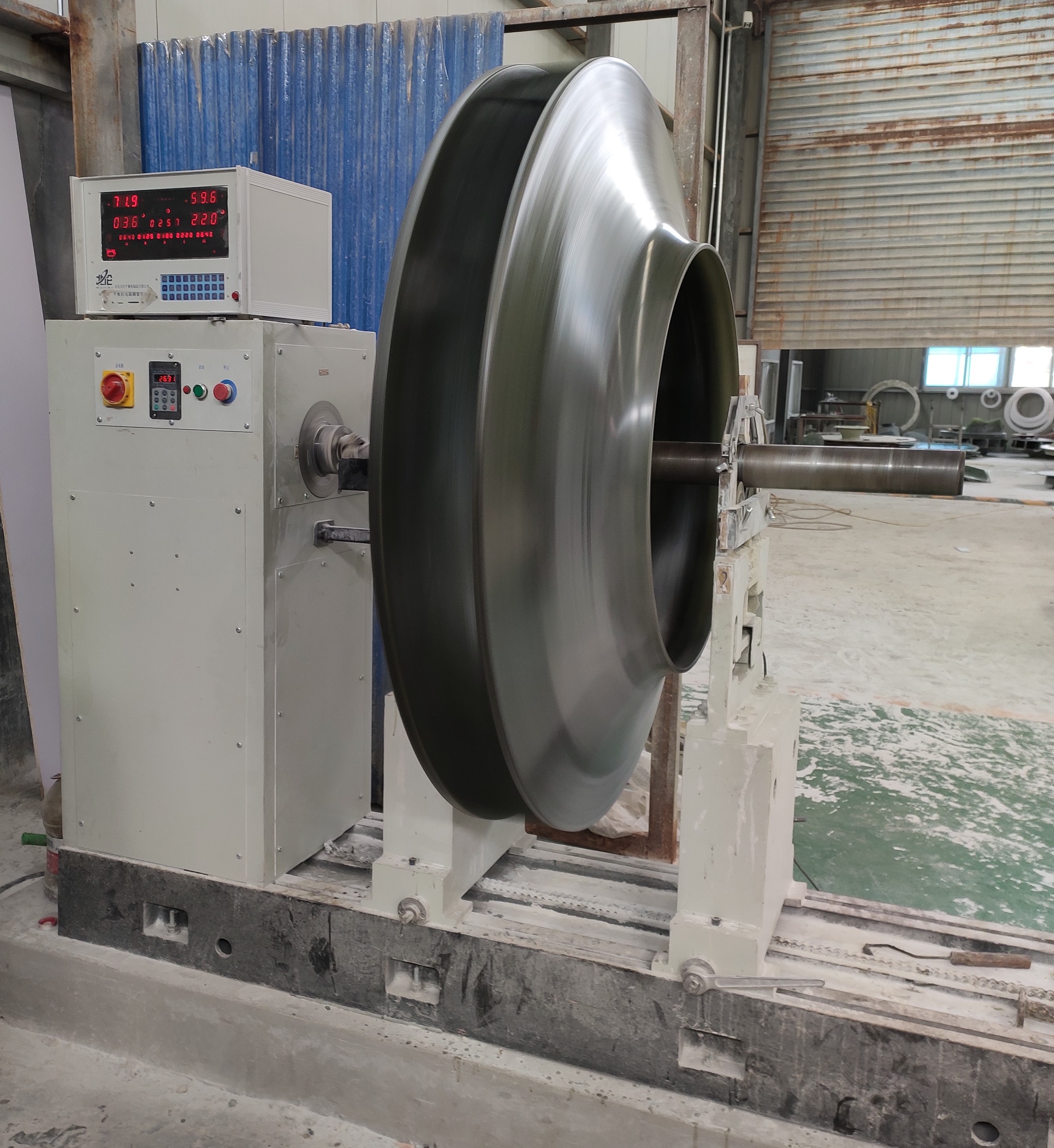

YFW-300 Balancing machine



Down load: Manual of balancer type YFW300

YFW-300 balancing machine is the factory for the wind turbine factory designed and manufactured a balance machine. The machine's mechanical system parameters are optimized for their frequent start-up.
The machine is designed for horizontal hard support, universal joint drive, and other general forms. The overload capacity of the machine is larger and the short term load is more than 2 times.

Our balancing machine is very important to reflect the nature of the balance of the machine, the replacement of different rotors is not re-calibration, direct use on the line.
The measuring part of the balancing machine uses a closed load cell: it has the advantages of no bump, high sensitivity and durability, low speed measurement performance, axial force interference and speed sensor.
In addition to the characteristics of a universal horizontal hard bearing balancing machine, but also specifically for the balance of the characteristics of the fan impeller given two important parameters.
First, the maximum balance of the rotor diameter of 1500 mm  ,
Second, the maximum rotor mass of 300 kg, these two parameters determine the machine with the highest sensitivity to detect most of the size of the impeller for the machine.

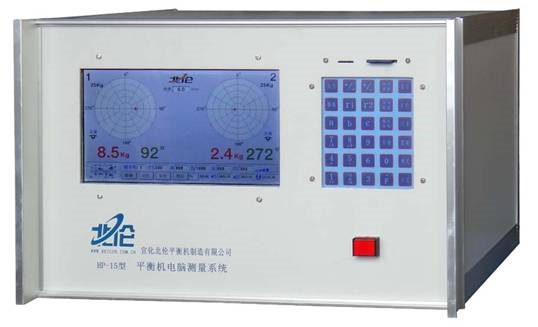

Please refer to "YFW-300 Fan Impeller Balancer User's Manual" for details of this machine. The machine is equipped with HP15 or HP16 computer measurement system.


The main technical parameters are as follows:


1. Rotor mass range: 10-300 kg
2. Maximum rotor diameter: ............................................. Φ1500 mm
3. Maximum support shaft diameter: ....................................... Φ10--90 mm
4. Maximum support length: ................................................... 1500 mm
5. Balance the working speed: ................................ 240,480,450,900 r / min
6. Minimum reachable residual unbalance: ............................ 1 gram. Mm / kg
7. Motor power: .............................................. YD132s 2.2 / 3.3 kW
8. Power: ...................................................... 380 volts, 50 hertz
