YYQ-160 |

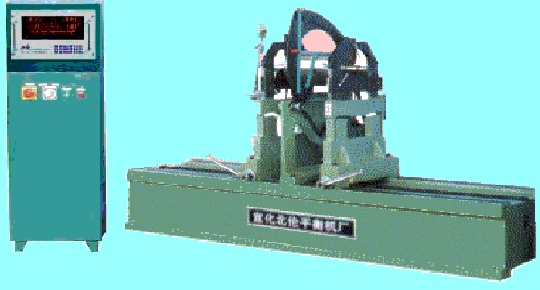

YYQ-160 The Hard Bearing Balancer (With Belt drive) The Y series of balancing machine , is an ideal versatile for rotors of different types . It`s easy operation. Legible reading , high efficiency ,and to be suitable motor ,fan ,crank shaft machine etc.
SPECIFICATION
Mass of workpieces 10--160kg Max.diameter of workpieces 1100mm Journal diameter of workpieces 10--90mm Distance between two bearing supports of workpieces journal 1500 mm Balancing speed (when the diament of driving rotor is 100mm) 600--1850 r/min Min.achievable residual unbalance (emar) ≤0.5g.mm/kg Power supply 380v 50hz 3ph Motor rating 0.85/1.1kw
|
|
