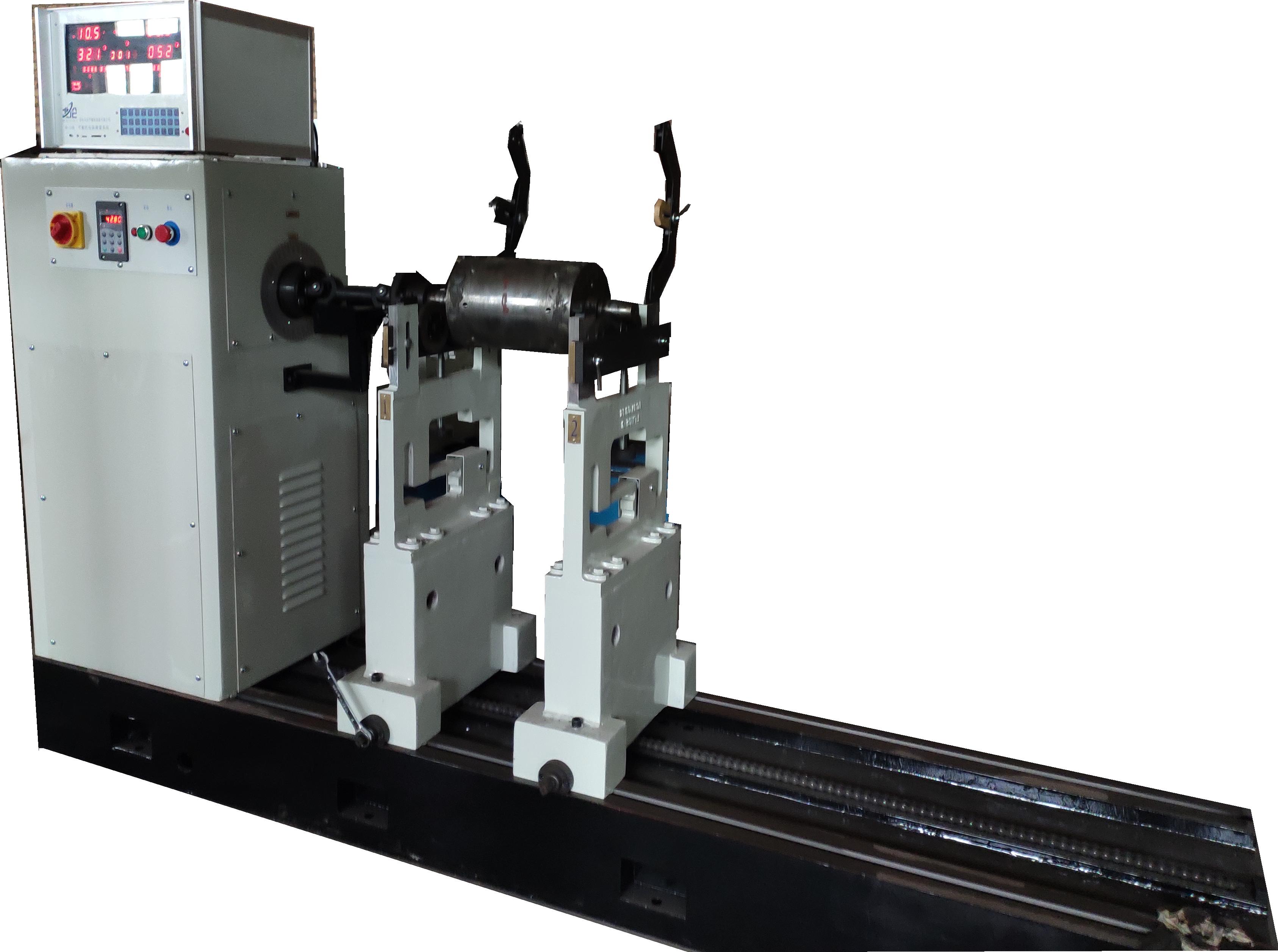

YFW-500 fan impeller balancing
machine is a kind of balance machine specially designed and
manufactured for fan manufacturing plant. The machine is designed
for horizontal hard bearing, universal joint drive, digital display,
automatic measuring electric measuring instrument and other general
forms. The measurement part balancing machine using a closed type
sensor. It has the advantages of high sensitivity, no damage to a
durable, low speed measurement and good performance. In addition to
the characteristics of the universal horizontal hard support
balancing machine, two important parameters are given for the
balance characteristics of the fan impeller. First, the maximum
balance rotor diameter of 1600 mm, and secondly, the maximum rotor
mass of 500 kg, these two parameters determine the highest
sensitivity to detect the vast majority of dimensions applicable to
the impeller of the machine.
The main technical
parameters are as follows:
1. rotor quality range:........................ 10-500 kilograms
2. maximum rotor diameter:............................. Mm 1600 mm
3. maximum support shaft diameter:...................... Mm 10--90
mm
(optional annex 90--180mm)
4. maximum supporting length:............................... 1500 mm
5. balance working speed:.............. 220440420850 revolutions per
minute
6. minimum achievable residual unbalance:............ 1 grams. Mm /
kg
7. motor power:.................................... YD132s 2.2/3.3
kw
8. power:............................................. 380 volts, 50
Hz
