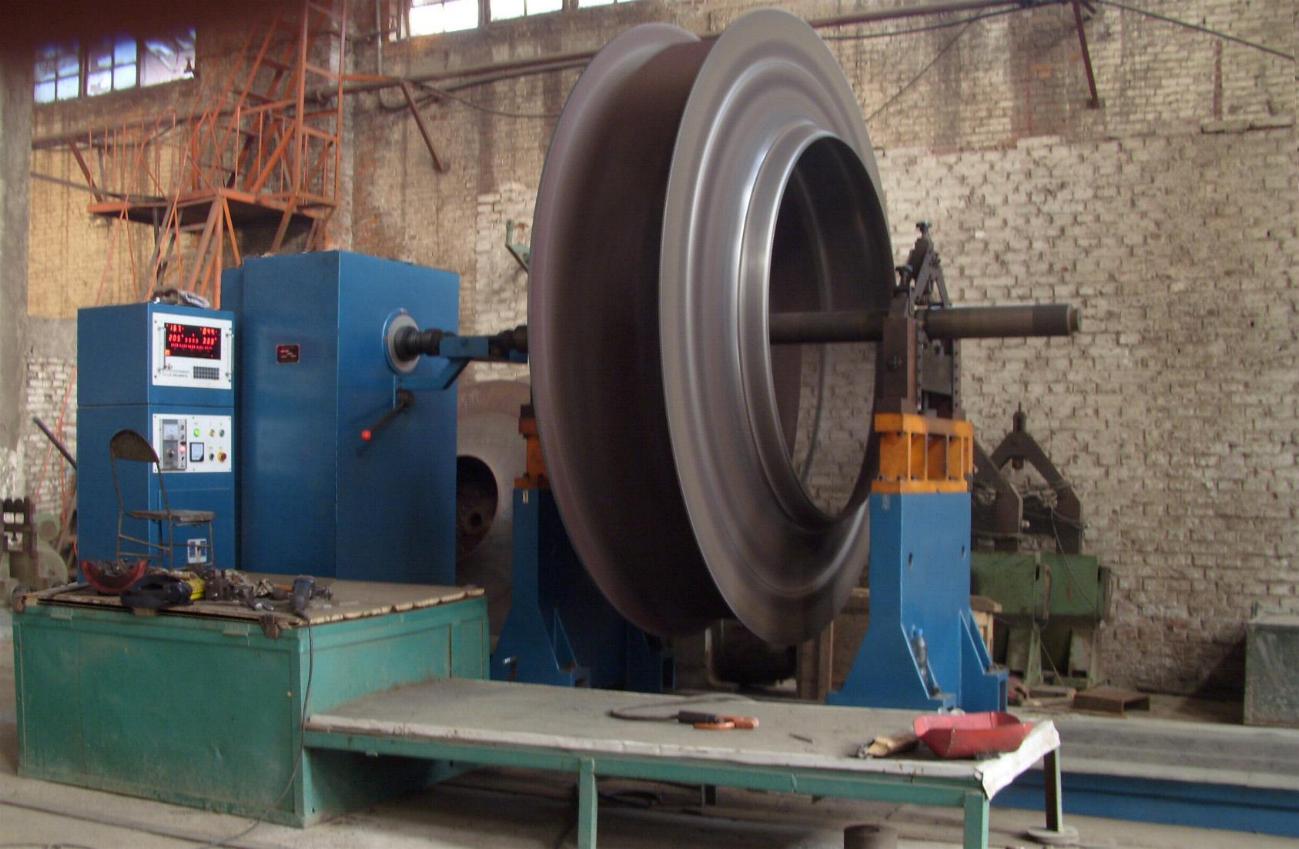

　  YFW-5000 large-scale balancing machine is the factory for the fan manufacturing industry specifically designed and manufactured a balancing machine. The machine is designed for horizontal hard support, universal joint drive, digital display or computer digital display and other common forms. In addition to the characteristics of a universal horizontal hard bearing balancing machine, but also specifically for the balance of the characteristics of the fan impeller given three important parameters. One, the maximum balance of the rotor diameter of 3000 mm (30 fan impeller); Second, the use of 37 kilowatt stepless speed motor to ensure that the balance of 30 fan impeller necessary to start the way and power; Third, the maximum rotor mass 5000 Kg, can guarantee the highest sensitivity to detect most of the size of the impeller for the machine. These three parameters determine the machine in the fan manufacturing industry, a wide range of adaptability.


1. Rotor mass range: .......... ........ 100-5000 kg
2. Maximum rotor diameter: ..... .............. Φ3000 mm
5. Balance the work speed: .. .... stepless speed 150-500 r / min
6. Minimum reachable residual unbalance: ... .... 1 gram. mm / kg
7. Motor power: ..... .............. Stepless speed regulation 37 kw
