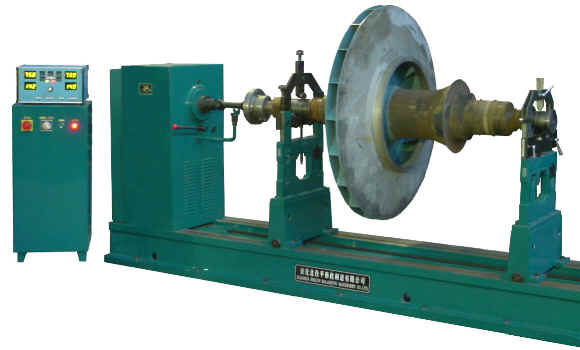

YFW-1000 THE HARD BEARING BALANCER

(With end drive)

¡¡This machine is a permanent hard support balancing machine-----

It is not necessary to recalibrate rotors with different shapes and weights. The magnitude and angle of unbalance can be measured at one start.



Yfw-1000 fan impeller balancing machine is a kind of balance machine specially designed and manufactured by our factory.

The machine is designed as horizontal hard support and universal joint transmission.

This machine can fully meet all the specifications of the General balancing machine, only check the special technical parameters and safety parameters according to the large diameter and large inertia. This machine can run safely and frequently for a long time and operate with high intensity.

The mechanical system parameters of the machine are optimized according to its frequent start-up.

Meet the technical requirements of jbt9101-2014 fan rotor balance:

It is also feasible and operable for the balance of externally suspended rotors.

Data memory and after shutdown can see the static balance value, and even balance value.



This machine adopts hp16 hard support balancing machine. The computer electrical measuring system is a special computer system for permanent standard setting. The core sampling CPU is a 32-bit industrial computer, which can be used for high-speed dynamic AC sampling. The digital optimized dynamic filtering of parameters can be set.



In the use of balancing machine, there is an efficient working mode: it is not necessary to recalibrate rotors with different shapes and weights, and the magnitude and angle of unbalance can be measured at one start.



It only needs to start once, and the parameters can be input after measurement



As long as you measure the data stably, press the memory key to memorize the data. Then the customer needs different calculation results, you can input the corresponding a, B, C, R1, R2 parameters, and get the corresponding calculation results immediately. Moreover, the calculation parameters can be changed at any time, and the calculation results after change can be obtained directly.



It is possible to input even parameters, such as R A, B, R, C, and so on. It can also be input later or modified at any time. The electric measuring box will change the value corresponding to the new parameter at any time.



SD card or TF card is used to store the test result report. 1000 report records, and report records. It can be flexibly moved to PC for direct report printing,




The mechanical and electrical energy exchange device of this machine adopts piezoelectric sensor. Since there is no mechanical movement, the failure rate is very low, and the low-speed performance is good (the minimum speed of the machine can reach 80 RPM). The measurement part of the balance machine adopts the closed type force sensor, which has the advantages of non-collision, high sensitivity, durability and good low-speed measurement performance. In addition to the characteristics of general horizontal hard support balancing machine, three important parameters are given for the balance characteristics of fan impeller.



First, the maximum diameter of balance rotor is 1800 mm



Second, 5.5 kW motor and vector inverter control.



Third, the maximum rotor mass is 1000 kg, which can ensure that most of the dimensions can be detected with the highest sensitivity, which is suitable for the impeller of the machine.



These three parameters determine the wide adaptability of the machine in the fan manufacturing industry.

For the detailed description of the machine, please refer to the operation manual of yfw-1000 balancing machine. The main technical parameters are as follows:SPECIFICATION

¡¡

  • 1. Mass of workpieces: ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 20kg -1000kg

  • 2. Max.diameter of workpieces: ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ ¦µ1800 mm

  • 3. ournal diameter of workpieces ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­   ¦µ 15-120mm

  • 4. Balancing speed: ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­VVVT¡­¡­180-900 rpm

  • 5. Min.achievable residual unbalance(emar):¡­¡­¡­¡­¡­¡­¡­¡­¡­ 1g.mm/kg

  • 6. Unbalance reduction ratio(URR)¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 85%

  • 7.Motor rating: ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 5.5kw

    •

    ¡¡

    ¡¡

    ¡¡

    The others:  yfw-160  yfw-300  yfw-1000  yfw-1600  yfw-3000  yfw-16000



       HP-16 hard bearing balancing machine computer electrical measurement instrument is a balanced machine dedicated computer: high reliable industrial computer chip circuit, direct 220VAC power supply, strong anti-interference, adaptation to unstable power supply conditions, for the unstable speed can also be measured. Software vector solution measurement data, large font digital display. Overall 4 digit display input parameters, a key indicator of static balance, can be set parameters of the data stability.

      The measured data can be processed and processed after shutdown: the different parameters can be transformed, and the measured results are more consistent with the actual measurement results. The operator if you need other parameters of the solution results, you can enter the corresponding parameters, the corresponding calculation results. Once again change the calculation parameters, the same can be directly obtained after the change of the calculation results. No need to boot the measurement again.

      Automatic (or manual) memory while driving the engine shutdown function, customer self calibration function, recovery of the factory calibration function, sensor signal line fault judgment and indication function.

    ¡¡

    ¡¡
